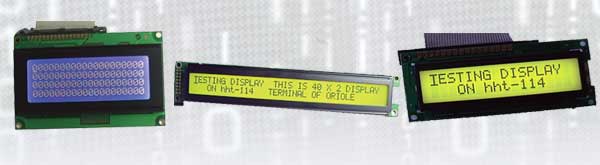

   ALPHANUMERIC LCD MODULES

 Name / Model
 Number		  Module Size
 in mm (L X W X H)		   Viewing Area
  in mm (L X W)		   Character Size
  in mm (L X W)		   Dot Size
  in mm (L X W)

  LCM
Technology

 8 characters x 1 line
 ODM 08108  61 x 33  45 x 13.5  4.45 x 8.9  0.85 x 0.95  4 bit and
 8 bit
 controller
 ODM 08108-1  69 x 27  45 x 13.5  4.45 x 8.9  0.85 x 0.95  4 bit
 controller
 only
 8 characters  x 2 lines
 ODM 08216  40 x 29.5  31 x 14.5  2.7 x 4.35  0.5 x 0.5   SMD / COB
 16 characters x 1 line
 ODM 16116-2 S  122 x 33 x 10.8  99 x 13  4.92 x 8.18  0.92 x 1.1  COB
 ODM 16116-2 SL  122 x 33 x 13.9  99 x 13  4.92 x 8.18  0.92 x 1.1  COB
 ODM 16116-5 S  80 x 36 x 9.5  65 x 14  3.15 x 6.30  0.55 x 0.70  COB
 ODM 16116-5 SL*  80 x 36 x 12.7  65 x 14  3.15 x 6.30  0.55 x 0.70  COB
 16 characters x 2 lines
 ODM 16216-8 SL  53 x 20 x 8  36 x 10  1.85 x 3.15  0.33 x 0.35  COB
 ODM 16216-9 S  80 x 36 x 9  64 x 16  2.96 x 5.56  0.56 x 0.66  COB
 ODM 16216-9 SL*  80 x 36 x 10  64 x 16  2.96 x 5.56  0.56 x 0.66  COB / SMD
 ODM 16216-2 SL  122 x 44 x 13  99 x 25  4.84 x 9.66  0.92 x 1.10  COB
 ODM 16216-4 SL  190 x 54 x 14.68  144 x 29.5  7.79 x 12.5  1.51 x 1.51  COB
 16 characters  x 4 lines
 ODM 16416 SL  87 x 60 x 14.5  61.8 x 25.2  2.96 x 4.76  0.56 x 0.56  COB
 20 characters x 2 lines
 ODM 20216-SL  116 x 37 x 13  82.8 x 18.4  3.20 x 5.55  0.60 x 0.65  COB
 20 characters x 4 lines
 ODM 20416-SL  77 x 47 x 14  60 x 22  2.30 x 4.03  0.55 x 0.55  COB
 ODM 20416-1 SL*  98 x 60 x 13.7  77 x 26.5  2.95 x 4.75  0.55 x 0.55  COB / SMD
 ODM 20416-2 SL  146 x 62 x 14  123 x 43  4.84 x 9.22  0.92 x 1.10  COB
 32 characters x 1 lines
 ODM 32116-5 SL  174.5 x 31 x 14  141.2 x 17  3.42 x 7.9  0.62 x 0.7   SMD
 40 characters x 2 lines
 ODM 40216 SL  182 x 33.5 x 13.5  154.5 x 15.8  3.20 x 5.55  0.60 x 0.65  COB / SMD
 40 characters x 4 lines
 ODM 40416-SL  190 x 54 x 14  149 x 30  2.81 x 4.68  0.53 x 0.55  COB


* Newly introduced modules requiring a 3.3V input driving voltage.
All standard modules have a yellow green panel with black characters displayed.
Modules are also available in - /A type i.e. Dark blue panel with white characters displayed
                                                          /B type i.e. Dark panel with yellow-green characters displayed &
                                                          /C type i.e. Light blue panel with white characters displayed


 --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
